Pictures of the repair of locomotive no 72 Fenchurch

Main steam pipe flange on cylinders, 1995. 405x275



Main steam pipe flange on cylinders, 1995. 405x275

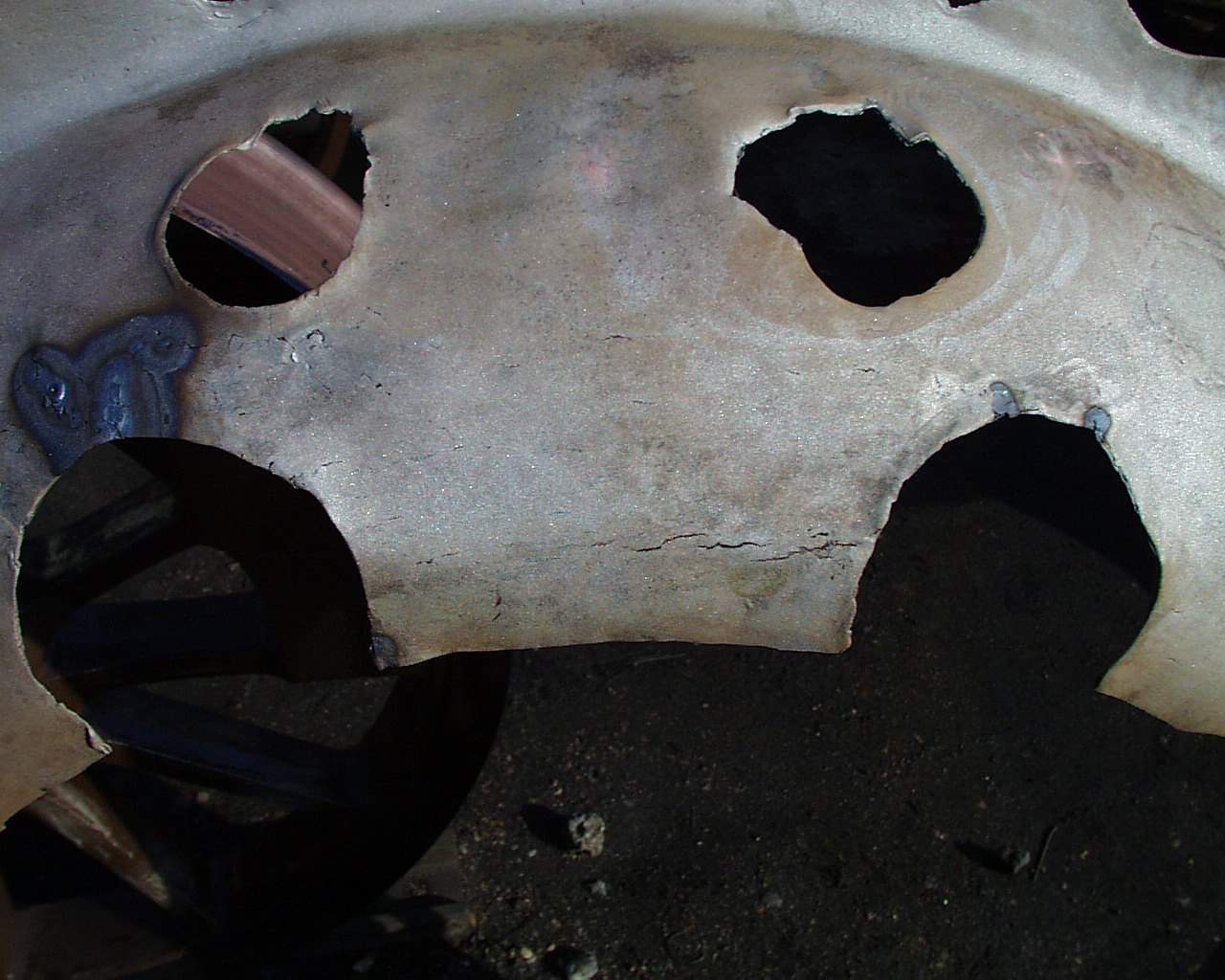

Exhaust manifold, showing hole and old patch, 1995. 405x275



Main steam pipe flange on cylinders, 1995. 405x275



Lubrication and feedwater heating connections on cylinders, 1995. 405x275



Loose piece of casting on cylinders, 1995. 405x275



Hoisting out the cylinders, 1995. 405x275



Iron-maker's stamp on frames, August 1996. 1266x666



Wheels painted in undercoat, June 1997. 580x390



Wheels being painted in topcoat, June 1997. 580x390



The boiler, June 1997. 580x390



Side-stays where previously seal-welded, June 1997. 580x390



The frames, June 1997. 580x390



The cylinders, June 1997. 580x390



Inside front of frames, June 1997. 580x390



Exhaust manifold, showing hole and old repair, August 1997. 425x290



Exhaust manifold, showing hole and old repair, August 1997. 430x290



Main steam pipe flange on cylinders showing corrosion, August 1997. 430x290



Main steam pipe flange on cylinders showing corrosion, August 1997. 430x290



5-sided nut securing cylinders to frames, August 1997. 325x300



5-sided nut securing cylinders to frames, August 1997. 325x300



Wheels, August 1997. 400x275



Corroded main steam pipe regulator elbow, September 1997. 375x245



Corroded and fractured spring hanger socket, September 1997. 370x305



Frame angle above cylinders cut in past by drilling, September 1997. 355x270



Frame where cylinders fit, September 1997. 410x275



Rear left inside corner of cab, September 1997. 580x375



Frame inside by left trailing hornplate, September 1997. 410x275



Rear right corner of bunker showing split, September 1997. 410x275



Chimney, September 1997. 410x265



Blanked over tank steam circulating pipe flange, September 1997. 420x270



Inside cab roof showing old repair and corrosion, September 1997. 420x270



Rear right corner of bunker showing split, May 1998. 585x390



Corroded main steampipe smokebox elbow, May 1998. 580x390



Smokebox, May 1998. 580x390



Inside left corner of bunker showing corroded platework and 1962 repairs, May 1998. 580x390



Inside left side of bunker showing corroded platework and 1962 repairs, May 1998. 580x390



Left rear splasher, May 1998. 590x390



Inside front of bunker showing corrosion hole, May 1998. 590x390



Corroded cylinder main steam pipe flange, June 1998. 860x580



Front right corner of frames showing cutting marks, August 1998. 500x360



Tube removal, August 1998. 500x350



Frames, August 1998. 500x350



Bunker corner repair in progress, August 1998. 505x350



Springs, September 1998. 575x390

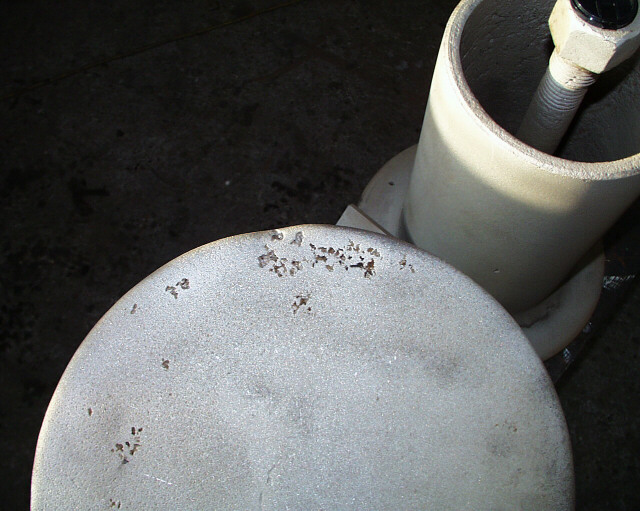

Buffer face showing casting holes, 24 January 1999. 1280x1024 640x512 320x256



Buffer socket showing casting defect, 24 January 1999. 1280x1024 640x512 320x256



Buffer socket showing welded repair, 24 January 1999. 1280x1024 640x512 320x256



Buffer socket showing undamaged inner part, 24 January 1999. 1280x1024 640x512 320x256



Buffer socket showing damaged inner part, 24 January 1999. 1280x1024 640x512 320x256



Front buffer beam showing material suppliers' stamp, 24 January 1999. 1280x1024 640x512 320x256



Front buffer beam showing material suppliers' stamp, 24 January 1999. 1280x1024 640x512 320x256



New hornstay bolts, outside of frames, 28 February 1999. 1280x1024 640x512 320x256



New hornstay bolts, inside of frames, 28 February 1999. 1280x1024 640x512 320x256



Vacuum pipework below rear of engine, 28 February 1999. 1280x1024 640x512 320x256



Crankpin welded into new wheel, 28 February 1999. 1280x1024 640x512 320x256



New ashpan, 28 February 1999. 1280x1024 640x512 320x256



New rear spring hanger socket, 7 March 1999. 1280x1024 640x512 320x256



Repairs to the rear right splasher box, 23 March 1999. 1280x1024 640x512 320x256



Axlebox fitted for marking machining centre, 28 March 1999. 1280x1024 640x512 320x256



Axlebox fitted for marking machining centre, 28 March 1999. 1280x1024 640x512 320x256



Axlebox fitted for marking machining centre, 28 March 1999. 1280x1024 640x512 320x256



Right cab side reinstalled, 16 May 1999. 1280x1024 640x512 320x256



Rear right sandbox under repair, 16 May 1999. 1280x1024 640x512 320x256



Rear left cab box under repair, 16 May 1999. 1280x1024 640x512 320x256



Cab floor repairs, 16 May 1999. 1280x1024 640x512 320x256



A view of the engine's frames, 26 June 1999. 1280x1024 640x512 320x256



Westinghouse pump support bracket, 1 August 1999. 1280x1024 640x512 320x256



Levelling the frames, August 1998 (Mike Nichols). 1280x1024 640x512 320x256



Using modern technology, 30 August 1999. 1280x1024 640x512 320x256



Handbrake rods showing number 78, 26 September 1999. 1280x1024 640x512 320x256



Handbrake rods showing number 78, 26 September 1999. 1280x1024 640x512 320x256



Overhauled brake cylinder, 26 September 1999. 1280x1024 640x512 320x256



Repaired rear left sandbox, 26 September 1999. 1280x1024 640x512 320x256



Repaired rear right sandbox, 26 September 1999. 1280x1024 640x512 320x256



Tubeplate steampipe elbow studs removed, 26 September 1999. 1280x1024 640x512 320x256



Tubeplate steampipe elbow studs removed, 26 September 1999. 1280x1024 640x512 320x256



Cylinders ready for reassembly, 9 October 1999. 1280x1024 640x512 320x256



Cylinder with valve lying in place, 9 October 1999. 1280x1024 640x512 320x256



Cylinder valve ports, 9 October 1999. 1280x1024 640x512 320x256



Cylinders reassembled, 10 October 1999. 1280x1024 640x512 320x256



Cylinders being reinstalled in frames, 6 November 1999. 1280x1024 640x512 320x256



Cylinders being reinstalled in frames, 6 November 1999. 1280x1024 640x512 320x256



Cylinders being reinstalled in frames, 6 November 1999. 1280x1024 640x512 320x256



Cylinders newly reinstalled in frames, 6 November 1999. 1280x1024 640x512 320x256



Cylinders newly reinstalled in frames, 6 November 1999. 1280x1024 640x512 320x256



Sylvia Marshall painting underneath the running plate, 21 November 1999. 1280x1024 640x512 320x256



Andrew Wilkens removing wasted boiler studs, 21 November 1999. 1280x1024 640x512 320x256



Broken rear right corner of frame, 28 November 1999. 1280x1024 640x512 320x256



Broken rear right corner of frame, 28 November 1999. 1280x1024 640x512 320x256



Broken rear left corner of frame, 28 November 1999. 1280x1024 640x512 320x256



Broken rear left corner of frame, 28 November 1999. 1280x1024 640x512 320x256



Kevin George fitting an axlebox tray, 28 November 1999. 1280x1024 640x512 320x256



Axleboxes machined and trays fitted, 28 November 1999. 1280x1024 640x512 320x256



New bolts for fixing cylinders to frames, 22 December 1999. 1280x1024 640x512 320x256



New cylinder bolt and shear-screw, 22 December 1999. 1280x1024 640x512 320x256



Special nuts for front bufferbeam bolts where they foul rivet heads, 22 December 1999. 1280x1024 640x512 320x256



Kevin George fitting a front bufferbeam bolt, 22 December 1999. 1280x1024 640x512 320x256



Special front bufferbeam nuts installed, 22 December 1999. 1280x1024 640x512 320x256



Special nut for upper cylinder/frame bolts, 2 January 2000. 1280x1024 640x512 320x256



Special nut for lower cylinder/frame bolts, 2 January 2000. 1280x1024 640x512 320x256



Rubber buffer pad for buffer springs, 6 January 2000. 1280x1024 640x512 320x256



Rubber buffer pad for drawbar spring, 6 January 2000. 1280x1024 640x512 320x256



Nuts on upper cylinder/frame bolts, 9 January 2000. 1280x1024 640x512 320x256



Tube stock for dummy condensing pipes, 3 February 2000. 1280x1024 640x512 320x256



Genuine chimney cap from a Terrier, 3 February 2000. 1280x1024 640x512 320x256



Genuine chimney cap from a Terrier, 3 February 2000. 1280x1024 640x512 320x256



Genuine chimney cap from a Terrier, 3 February 2000. 1280x1024 640x512 320x256



Genuine chimney cap from a Terrier, 3 February 2000. 1280x1024 640x512 320x256



Buffers and new springs, 6 February 2000. 1280x1024 640x512 320x256



New buffer springs, 13 February 2000. 1280x1024 640x512 320x256



Inside a buffer head, 13 February 2000. 1280x1024 640x512 320x256



Front running plate rear section, 20 February 2000. 1280x1024 640x512 320x256



Cutouts for larger cylinder covers in front running plate, 20 February 2000. 1280x1024 640x512 320x256



Cutouts for larger cylinder covers in front running plate, 20 February 2000. 1280x1024 640x512 320x256



Cutout for circular smokebox in front running plate, 20 February 2000. 1280x1024 640x512 320x256



Reassembled buffer with welded locking tab, 5 March 2000. 1280x1024 640x512 320x256



Reassembled buffer with locknut and pin, 5 March 2000. 1280x1024 640x512 320x256



Front buffers refitted, 5 March 2000. 1280x1024 640x512 320x256



Rear buffers refitted, 5 March 2000. 1280x1024 640x512 320x256



Richard Harvey working on valve rods, 5 March 2000. 1280x1024 640x512 320x256



Boiler backhead cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler backhead cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler backhead cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler backhead cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler backhead cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler backhead cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler top cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler top cladding, 5 March 2000. 1280x1024 640x512 320x256



Boiler top cladding, 5 March 2000. 1280x1024 640x512 320x256



New spring pocket fitted, 11 March 2000. 1280x1024 640x512 320x256



New spring pocket fitted, 11 March 2000. 1280x1024 640x512 320x256



Failed spring pocket rivet, 11 March 2000. 1280x1024 640x512 320x256



Old spring pocket, 11 March 2000. 1280x1024 640x512 320x256



Old spring pocket, 11 March 2000. 1280x1024 640x512 320x256



Old spring pocket, 11 March 2000. 1280x1024 640x512 320x256



Number on buffer casing, 12 March 2000. 1280x1024 640x512 320x256



Kevin George fitting cylinder cladding, 19 March 2000. 1280x1024 640x512 320x256



Driving axlebox fitted for centre marking, 19 March 2000. 1280x1024 640x512 320x256



Driving axlebox fitted for centre marking, 19 March 2000. 1280x1024 640x512 320x256



Newly painted wheelset, 19 March 2000. 1280x1024 640x512 320x256



Driving axlebox journal, 19 March 2000. 1280x1024 640x512 320x256



Wheelsets, 19 March 2000. 1280x1024 640x512 320x256



Typical "Fenchurch Weather", 27 March 2000. 1280x1024 640x512 320x256



Boiler repositioned for repair work, 27 March 2000. 1280x1024 640x512 320x256



First movement on its wheels, 27 March 2000. 1280x1024 640x512 320x256



Setup for aligning the slidebars, 31 March 2000. 1280x1024 640x512 320x256



Setup for aligning the slidebars, 31 March 2000. 1280x1024 640x512 320x256



Matthew Cousins working on the tanks, 31 March 2000. 1280x1024 640x512 320x256



Martin Payne checking the wire for aligning the slidebars, 31 March 2000. 1280x1024 640x512 320x256



Setup for aligning the slidebars, 31 March 2000. 1280x1024 640x512 320x256



Setup for aligning the slidebars, 31 March 2000. 1280x1024 640x512 320x256



Measuring the slidebars alignment, 31 March 2000. 1280x1024 640x512 320x256



2 April 2000. 1280x1024 640x512 320x256



Close-up of a wheel, 2 April 2000. 1280x1024 640x512 320x256



Front of frame area, 2 April 2000. 1280x1024 640x512 320x256



Slidebars fitted, 2 April 2000. 1280x1024 640x512 320x256



Crank axle with eccentric straps fitted, 2 April 2000. 1280x1024 640x512 320x256



Cleaned and painted tank bottom, 2 April 2000. 1280x1024 640x512 320x256



Old white-metal shell from coupling rod bush, 9 April 2000. 1280x1024 640x512 320x256



Cab roof with corroded old repairs, 9 April 2000. 1280x1024 640x512 320x256



Ben Weathrall removing old rivets from cab roof, 9 April 2000. 1280x1024 640x512 320x256



Cab roof with corroded old repairs, 9 April 2000. 1280x1024 640x512 320x256



White-metalling the coupling rod bushes, 9 April 2000. 1280x1024 640x512 320x256



Trevor West and Richard Harvey adjusting the fit of the firehole door, 23 April 2000. 1280x1024 640x512 320x256



Cab roof sheet after gritblasting, 23 April 2000. 1280x1024 640x512 320x256



Edge of cab roof sheet after gritblasting, 23 April 2000. 1280x1024 640x512 320x256



Ian Collins rivetting new piece to cab roof sheet, 24 April 2000. 1280x1024 640x512 320x256



Cab roof sheet under repair, 13 May 2000. 1280x1024 640x512 320x256



Old right leading wheel with cracked hub, 13 May 2000. 1280x1024 640x512 320x256



Crack in hub of old right leading wheel, 13 May 2000. 1280x1024 640x512 320x256



Ian Collins making new brake cylinder mounting plate, 4 June 2000. 1280x1024 640x512 320x256



Repairs to the right tank, 4 June 2000. 1280x1024 640x512 320x256



First umber paint on the cab and bunker, 4 June 2000. 1280x1024 640x512 320x256



New vacuum train pipe rear section, 11 June 2000. 1280x1024 640x512 320x256



New vacuum train pipe front/side section, 11 June 2000. 1280x1024 640x512 320x256



Repaired cab roof sheet, 11 June 2000. 1280x1024 640x512 320x256



New smokebox wrapper, 9 July 2000. 1280x1024 640x512 320x256



New smokebox wrapper, 9 July 2000. 1280x1024 640x512 320x256



Newly repaired tanks, 9 July 2000. 1280x1024 640x512 320x256



Newly repaired tanks, 9 July 2000. 1280x1024 640x512 320x256



Left tank, 9 July 2000. 1280x1024 640x512 320x256



Right tank, 9 July 2000. 1280x1024 640x512 320x256



A feed water valve lifting rod, 9 July 2000. 1280x1024 640x512 320x256



Lower end of a feed water valve lifting rod, 9 July 2000. 1280x1024 640x512 320x256



Crack in upper end of a feed water valve lifting rod, 9 July 2000. 1280x1024 640x512 320x256



Cab roof and tanks being painted, 30 July 2000. 1280x1024 640x512 320x256



Dome base stud thread repairs, 30 July 2000. 1280x1024 640x512 320x256



Re-routed vacuum pipe, 30 July 2000. 1280x1024 640x512 320x256



Newly painted cab roof, 13 August 2000. 1280x1024 640x512 320x256



Straigtening the front tubeplate, 13 August 2000. 1280x1024 640x512 320x256



New heating and air pipe brackets, 13 August 2000. 1280x1024 640x512 320x256



Cab front after filling surfaces, 13 August 2000. 1280x1024 640x512 320x256



Number 1014 on the back of the regulator handle, 2 September 2000. 1280x1024



Number 8 on the front of the regulator handle, 2 September 2000. 1280x1024



Repairing the smokebox ring, 3 September 2000. 1280x1024 640x512 320x256



Repairing the smokebox ring, 3 September 2000. 1280x1024 640x512 320x256



New smokebox door angle ring, 3 September 2000. 1280x1024 640x512 320x256



Construction of new smokebox backplate, 4 September 2000. 1280x1024 640x512 320x256



Machining the repaired smokebox ring, 4 September 2000. 1280x1024 640x512 320x256



Dummy condensing pipes after bending, 6 October 2000. 1280x1024 640x512 320x256



Dummy condensing pipes after bending, 6 October 2000. 1280x1024 640x512 320x256



Chimney cap after repair, 6 October 2000. 1280x1024 640x512 320x256



Chimney cap after repair, 6 October 2000. 1280x1024 640x512 320x256



Repair to chimney cap, 6 October 2000. 1280x1024



Repair to chimney cap, 6 October 2000. 1280x1024



Repair to chimney cap, 6 October 2000. 1280x1024



General view of engine in workshop, 7 October 2000. 1280x1024 640x512 320x256



Smokebox backplate installed in frames, 7 October 2000. 1280x1024 640x512 320x256



Smokebox backplate installed in frames, 7 October 2000. 1280x1024 640x512 320x256



View underneath cab, 7 October 2000. 1280x1024 640x512 320x256



View underneath cab, 7 October 2000. 1280x1024 640x512 320x256



Air brake train-pipe cock, 8 October 2000. 1280x1024 640x512 320x256



New piston, 10 October 2000. 1280x1024 640x512 320x256



Assorted boiler fittings, 10 October 2000. 1280x1024 640x512 320x256



View of locomotive, 24 October 2000. 1280x1024 640x512 320x256



Rear view of smokebox, 24 October 2000. 1280x1024 640x512 320x256



Front sandbox/splashers under construction, 24 October 2000. 1280x1024 640x512 320x256



View of locomotive, 29 October 2000. 1280x1024 640x512 320x256



View of locomotive, 29 October 2000. 1280x1024 640x512 320x256



New chimney under construction, 19 November 2000. 1280x1024 640x512 320x256



New chimney under construction, 19 November 2000. 1280x1024 640x512 320x256



New chimney under construction, 19 November 2000. 1280x1024 640x512 320x256



New blastpipe under construction, 19 November 2000. 1280x1024 640x512 320x256



Cab interior, 19 November 2000. 1280x1024 640x512 320x256



Boiler backhead, 19 November 2000. 1280x1024 640x512 320x256



Repair to main steam pipe, 19 November 2000. 1280x1024 640x512 320x256



View of locomotive, 19 November 2000. 1280x1024 640x512 320x256



New chimney under construction, 26 November 2000. 1280x1024 640x512 320x256



View of locomotive, 26 November 2000. 1280x1024 640x512 320x256



Right tank under repair, 3 December 2000. 1280x1024 640x512 320x256



Right tank under repair, 3 December 2000. 1280x1024 640x512 320x256



New chimney fitted, 3 December 2000. 1280x1024 640x512 320x256



View of locomotive, 3 December 2000. 1280x1024 640x512 320x256



Inside the smokebox, 3 December 2000. 1280x1024 640x512 320x256

For details of this 1995-2001overhaul see the Fenchurch repair page.

---

Return to BRPS Home Page, to the Timetable or to Special Events

Current Loco Works News - Recent Archive News - 1997-2003 Archive News - Villa Team Pictures
Locos Intro - Operational Locos - Locos under overhaul - Locos on static display - Locos formerly based on the Bluebell
Loco Roster - Loco Stock List - Loco Works News - Join the Loco Dept

---

Visitor Info. - Museum - Trust - Catering - Contacts - What's New - Projects - Locos - Carriages & Wagons - Signals - History - Other - Links - Search - FAQ

---

Why not become a BRPS Member?     -     Get more involved as a Volunteer

Your ideal Film/TV location?
