Locomotive Works News
SE&CR H-class No. 263
2023 overhaul
Main web page for 263 - Earlier overhaul (completed in 2012) - Loco Works News
With its boiler certificate having expired in February 2022 it is planned that it should receive a rapid turn-around in view of the generally good condition of the boiler, and recent significant mechanical work. It does require a boiler lift, new crown girders and tubes, new tyres and new springs. It is also planned to fit a new cylinder block. The work is to be funded by a grant from the Bluebell Railway Trust, in part thanks to a bequest left by Ray Tanner specifically for work on this locomotive.
In the reports below, click on photos for enlargements.
Early November 2023
In the first photo below, on the left is the H's boiler, with a section of rear external firebox plate cut out for replacement. The smaller boiler on the right is the P-class boiler being overhauled for SE&CR No. 323 'Bluebell'.
The second photo shows the new crown stay nuts in place in the H's inverted firebox. (Both photos thanks to Andy Kelly, 7 November 2023)

July 2023
The H-class frames are seen below being lifted from the wheelsets to free them to be sent to the South Devon Railway for re-tyring. (Photos thanks to Andy Kelly, 24 July 2023)

Mid-February 2023

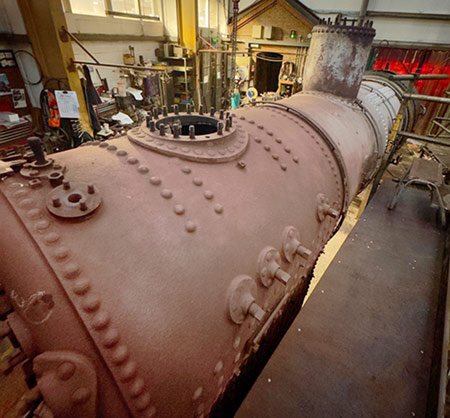

With Sir Arichibald Sinclair's boiler now upright and being re-tubed, space alongside was available for the H's boiler.
The cladding and insulation has been removed, and the boiler is now being needle-gunned. The backhead has been surveyed to see what needs doing. (Photos thanks to Andy Kelly, 11 February 2023)

November 2022
The H-class has been taken into the works and stripped sufficiently for the boiler to be lifted for examination. A complete set of new tyres have been delivered directly to the South Devon Railway, who sill fit the, when the wheels can be set there.
The second photo, showing the right hand (driver's side) tank viewed from the front, with the steam-operated reversing cylinders closest. The rod running back to the cab near the top of the tank transfers confirmation of the position of the valve gear back to the reverser indicator, which is mounted on the top of the tank within the cab. The lower rod operates the drain cocks. The hole at the bottom in front of the splasher carries the water balance pipe between the two tanks. (These photos by Tom James, 27 November 2022).

The two photos below, from Andy Kelly (20 November 2022), show the smokebox tube plate having been cleaned up, and the back-head stripped and needle gunned. The tubes have subsequently been removed, and on first sight the boiler looks in reasonable condition. Serious work on the boiler will commence once the boiler work on 'Sir Archie' is complete.
