Southern Railway
Maunsell Droplight Open Third No. 1336


Maunsell coach 1336 - Dave Clarke - 16 March 2009

SR Maunsell Drop-light Open Third 1336 before restoration Above: The coach on its re-launch special,
16 March 2009 (Dave Clarke)

Right: At the very start of its restoration, prior
to dismantling, in 1998 (Richard Salmon)

This coach is an unusual design, with large opening windows, which drop into the bodyside. Its interior is an open saloon arrangement. Carriages of this design were used from 1930 in conjunction with kitchen dining cars to providing dining accommodation on prestigious trains such as the "Bournemouth Limited", and on services between London Waterloo and Portsmouth, Exeter or Weymouth, and Brighton to Cardiff services.

This particular carriage, built in 1933, ran until December 1961, being subsequently used as an office at Fratton (when its interior was stripped out) until purchased for eventual restoration on the Bluebell Railway in 1987. The painstaking restoration commenced in 1998, and has been one of the most comprehensive ever undertaken by any UK heritage railway, involving the complete dismantling of the body down to the floor, and rebuilding using as much of the original material as had survived in good enough condition.

Whilst much of the original mahogany veneer panelling had survived under a coat of paint, most of the other interior fittings have had to be gathered from other sources, including seating from withdrawn 1930s-built Southern Railway electric trains.

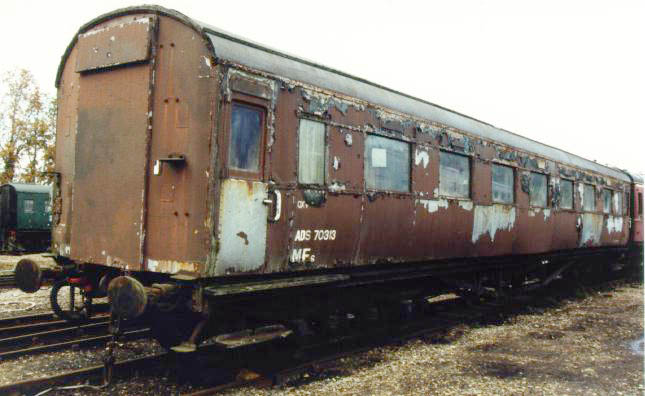

ADS 70313 at Fratton - Steve Mcnally - 1986 or 1987

In departmental service at Fratton as ADS 70313 shortly before entering preservation (Steve Mcnally)


1336 interior on entry into service - 6 Dec 2008 - Dave Clarke
Type: Open Third
Built: 1933 at Eastleigh
Original No: 1336
Other Nos: S1336S, 081901, DS 70313
Seating: 56 3rd class
Length: 59'
Restriction: 4
Weight: 32 Tons
Withdrawn: 1961
Preserved: 1987
To Bluebell: April 1988
Entered Bluebell service: December 2008

Right: The interior of 1336, on its entry into service (Dave Clarke)

See also the page for the this coach's overhaul

Below: In the workshop, part-way through the reconstruction of the main body structure (Richard Salmon)


SR Maunsell Drop-light Open Third 1336 part way through reconstruction
