Southern Railway No. 4227
Bulleid Brake Third, built in 1948 (under BR)

4227 at Bristol Docks - Tim Robbins

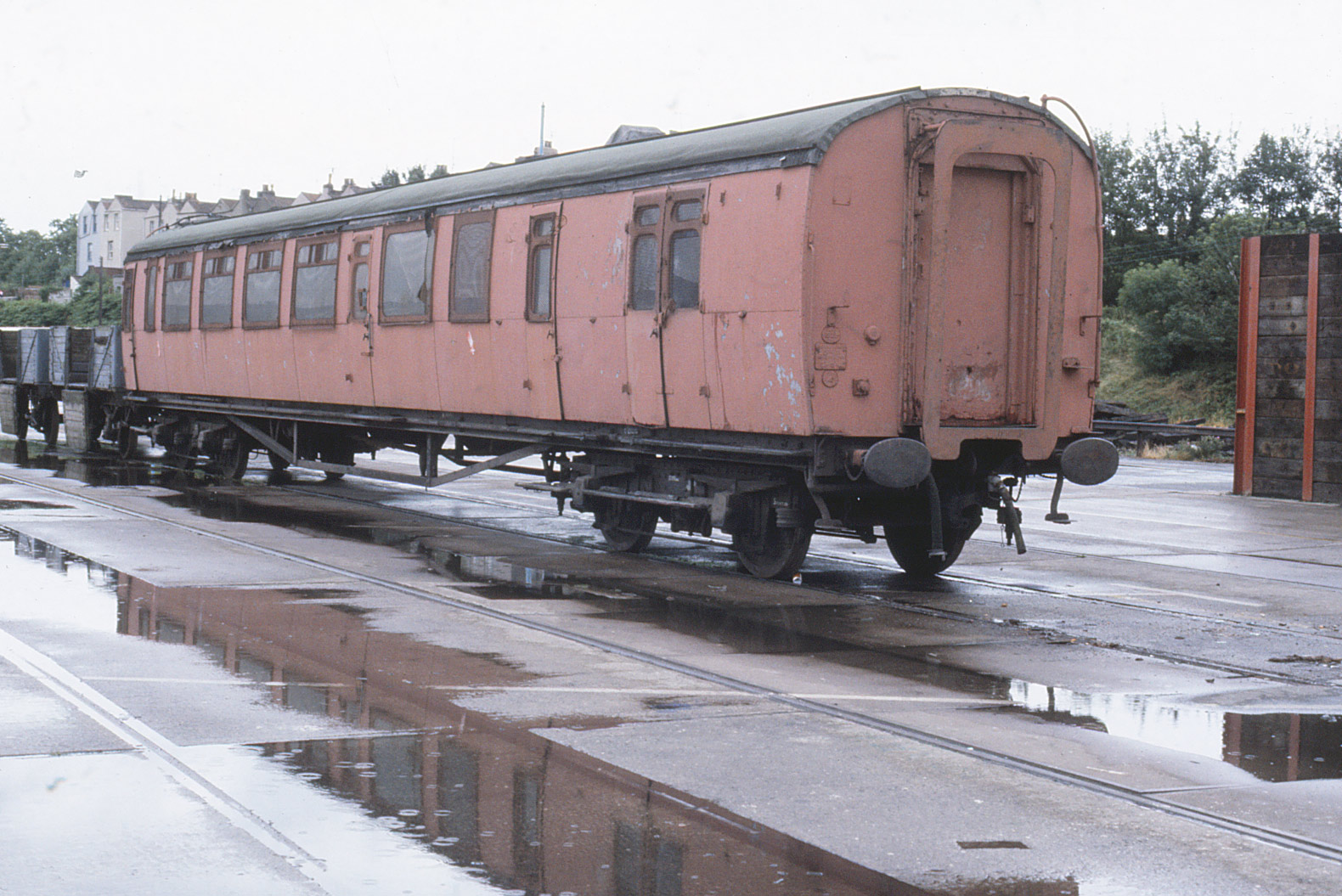

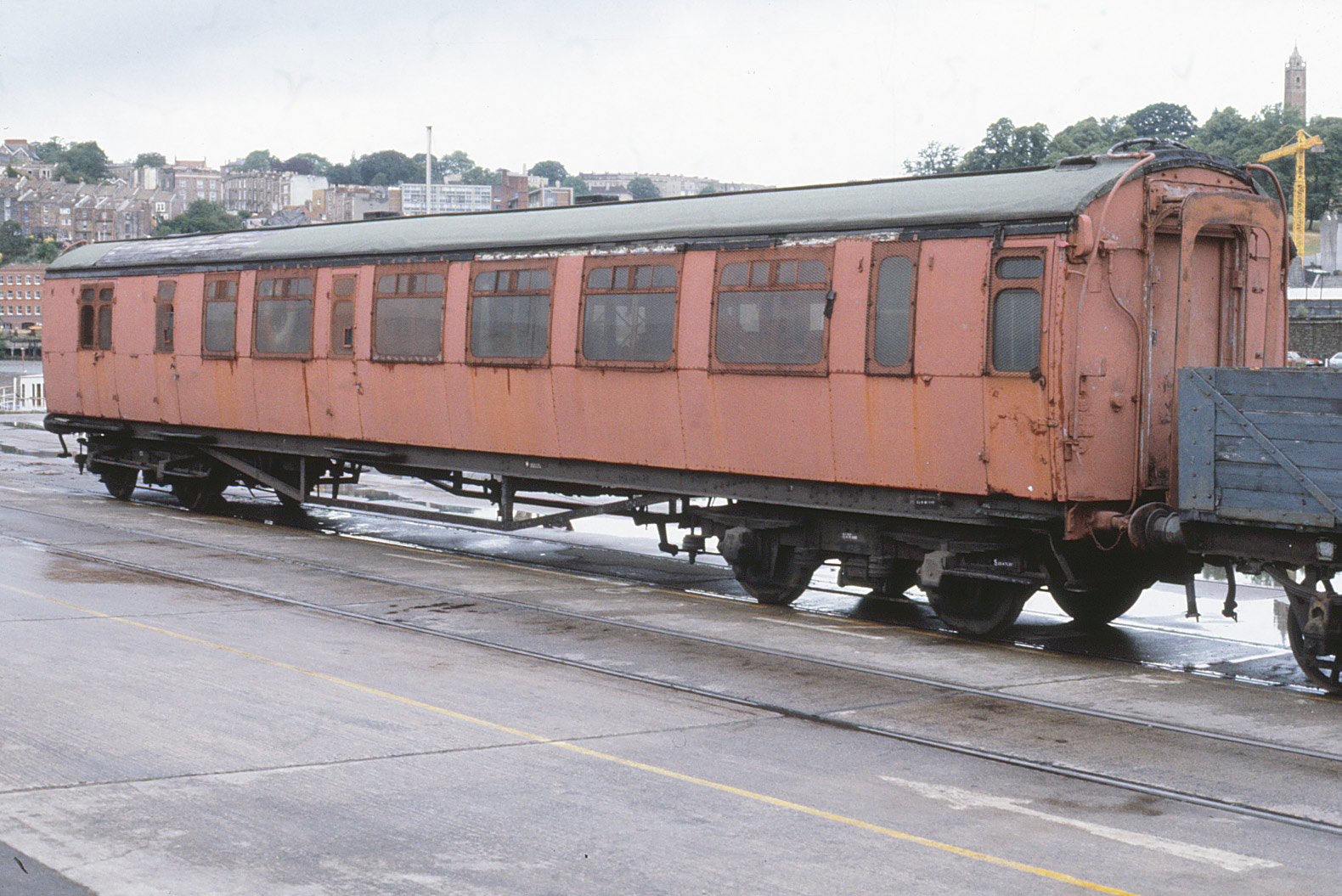

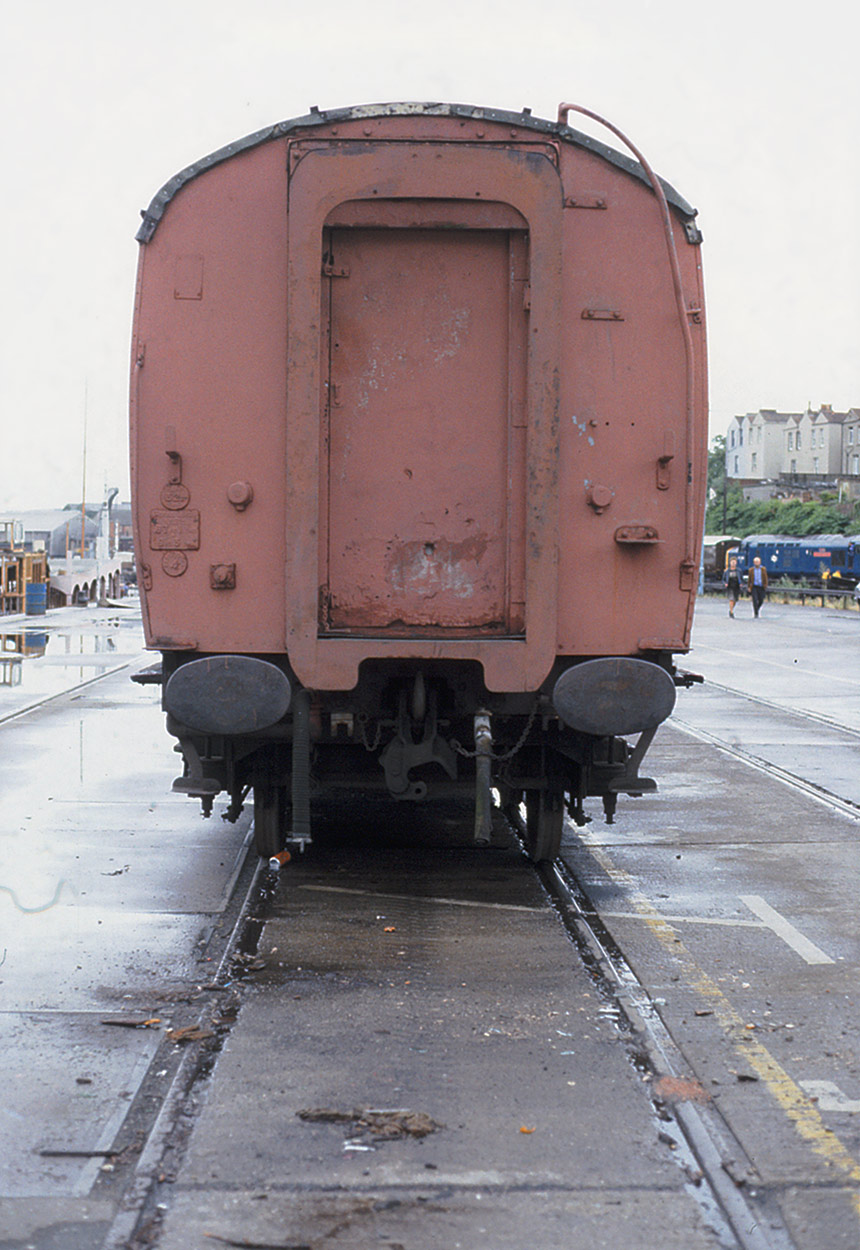

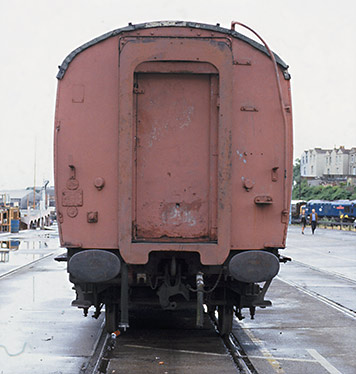

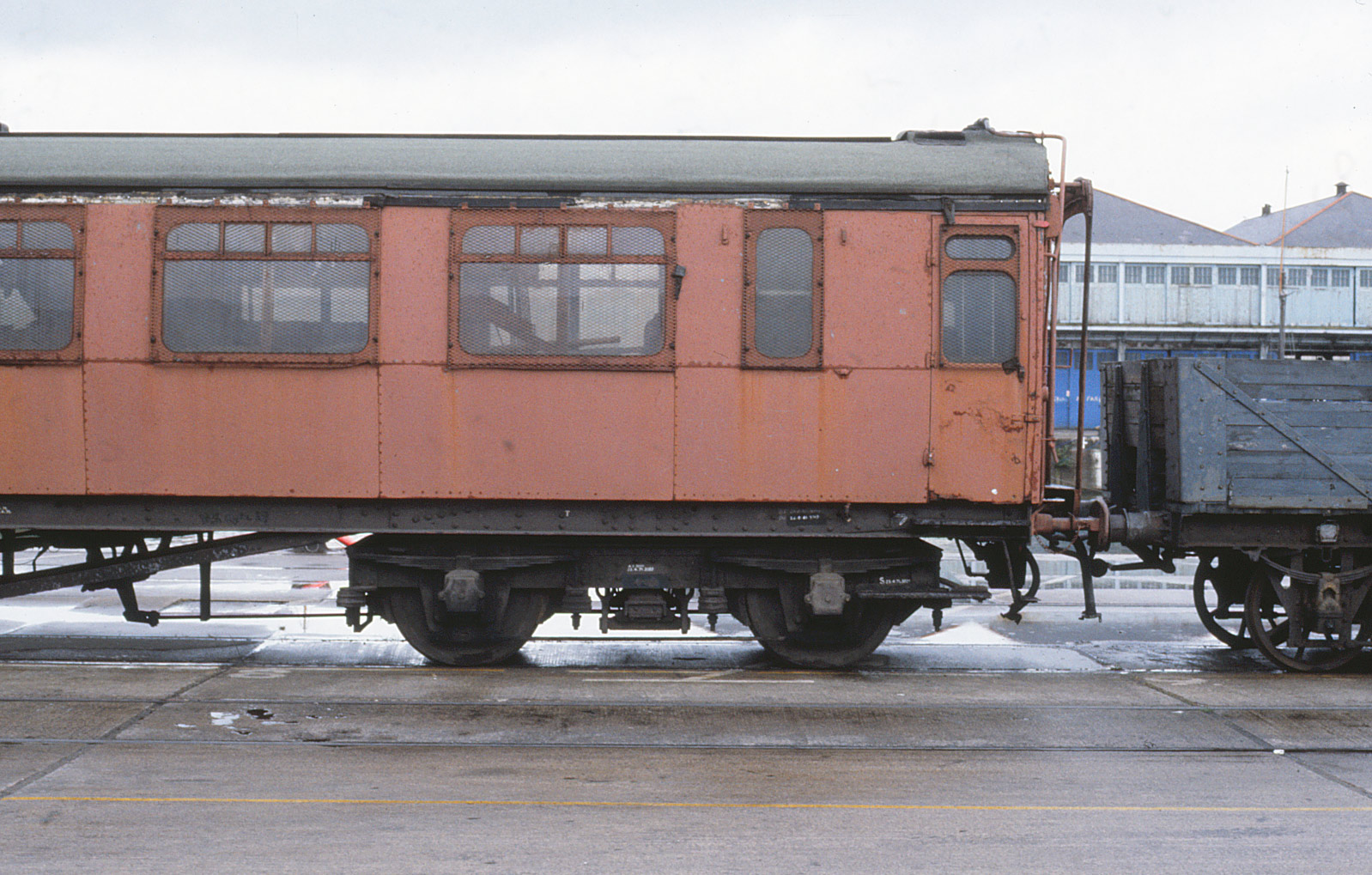

No. 4227 in early preservation days, at Bristol Docks in 1985 (above and below: Tim Robbins)

4227 at Bristol Docks - Tim Robbins
This coach was built to a Southern Railway design by Birmingham Railway Carriage and Wagon Co. It is unusual in its "semi-open" seating arrangement, having 8 seats in a compartment, another 4 in a "coupé", or half-compartment, and 32 in an open saloon.

Initially used out of Waterloo in three-coach set No. 804, from September 1948 it was on London to Dover, Ramsgate and Margate services, including the named 4.15 from Charing Cross, "The Man of Kent". From 18 January 1954 set 804 was expanded to become an 8-vehicle set, No. 474, remaining on London-Chatham-Ramsgate services until electrification in 1959.

Set 474 was formed:
    4227 3rd Brake (ex-Set 804)
    85 Third
    86 Third
    5783 Compo (ex-Set 803)
    5784 Compo (ex-Set 804)
    87 Third
    90 Third
    4228 3rd Brake (ex-Set 804)
        The four Thirds came from Loose stock.

One of the brake coaches of Set 474 at Ramsgate, March 1959, still in its original malachite green - photographer unknown The Lancing Works "Out" book (thanks to research by Glen Woods) shows that the set received an 'A2 repair' (which included a revarnish of the paint finish) at Lancing on 9 May 1957. The four BRCW brakes and composites which were still painted in SR Malachite green did indeed just have a revarnish, but the thirds, built later in Crimson Lake and Cream, were in fact repainted into the slightly darker BR green (confirmed in a photo taken in March 1959 - right - showing both shades on the different carriages in this set).

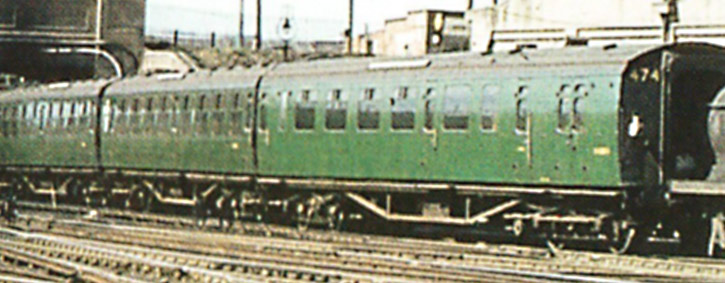

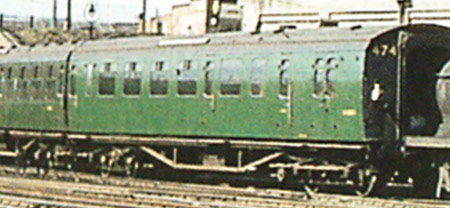

Photo, Right: Either 4227 or 4228, one of the brake coaches of Set 474 at Ramsgate, March 1959, still in its original malachite green - see details above (photographer unknown)

Throughout the latter part of the 1950s set 474 worked normally as follows -
    6.06am Ramsgate - Cannon Street (arr 8.28am) via Chatham
    8.36am ECS Cannon Street to Victoria (arr 9.28am) via Ludgate Hill
    9.42am shunt Victoria to Victoria Carriage Sidings
    9.49am shunt Victoria CS to Victoria (arr 9.54)
    10.35am Victoria to Ramsgate (arr 1.10pm) via Chatham
    4.15pm Ramsgate to Victoria (arr 7.22pm) via Chatham
    7.22pm propelled Victoria to Victoria CS
    7.50pm Victoria CS to Victoria (arr 7.53pm)
    8.35pm Victoria to Ramsgate (arr 11.12) via Chatham
The eight coach set operated with other vehicles attached at different times of day.

The whole set received an 'E4 repair' at Lancing between 14 September and 12 November 1959 when all the vehicles were painted BR(S) Green.

From June 1961 it was allocated to Waterloo - Salisbury, Waterloo - Bournemouth - Weymouth and through services to other Regions, ending up in 1964 on a regular Bournemouth-Sheffield service.

No. 4227 was transferred to the Western region on 19 October 1964, running in the West Country until, in 1966, it was withdrawn and converted into a cinema coach for railway engineering training use, retaining its original one-and-a-half compartments.

There are two photos of it as ADW150385 in departmental days, taken at Gas Ferry Road, Bristol on 25 January 1981 by Robert Tarling on the web site here and here.

Sold into preservation initially to a maritime preservation group at Bristol Harbour in 1985 for use as a store, a swap with a full brake was arranged to enable this interesting coach to come to the Bluebell, where it remains in excellent structural condition, having been stored under a tarpaulin (and intended now to be stored in the 'OP4' shed) whilst it awaits eventual restoration.

4227 at Bristol Docks - Tim Robbins 4227 at Bristol Docks - Tim Robbins

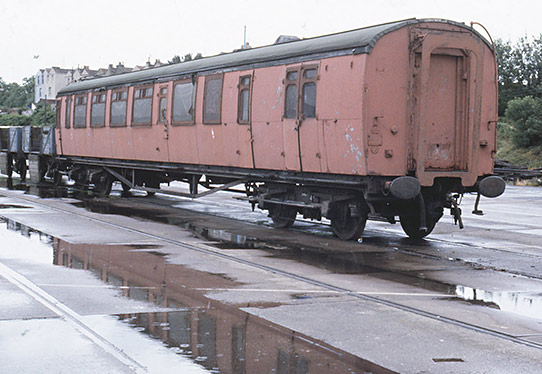

No. 4227 in early preservation days, at Bristol Docks in 1985 (Tim Robbins)

4227 at Bristol Docks - Jeremy Ovenden - 23 August 1985

Type: Semi-Open Brake Third
Built: (Birmingham Railway Carriage and Wagon Co.) May 1948
Original No: S4227S
Other Nos: W4227S, ADW 150385, ZDW 150385
Seating: 44 3rd class
Length: 64' 6"
Weight: 32.5 Tons
Withdrawn: 1966
Preserved: 1985
To Bluebell: 2 April 1987

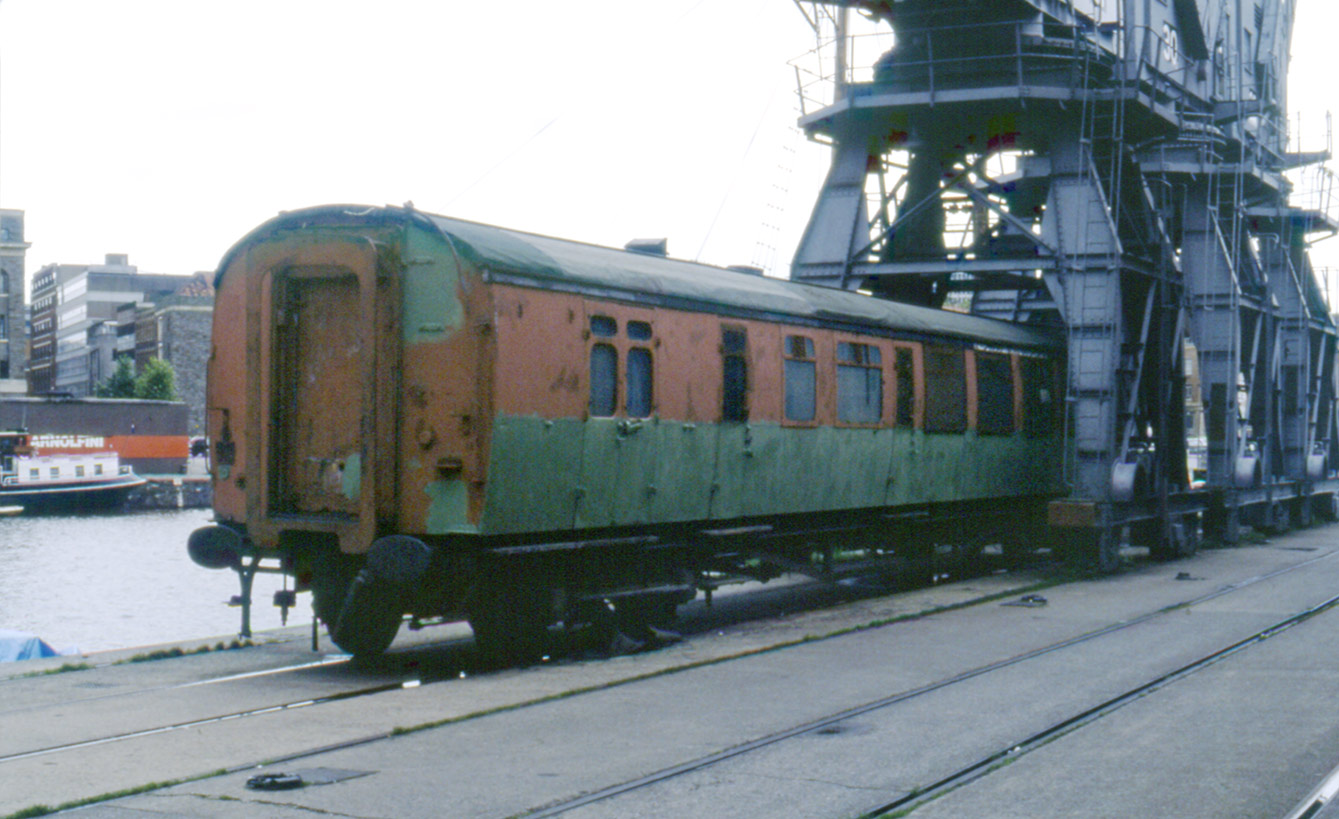

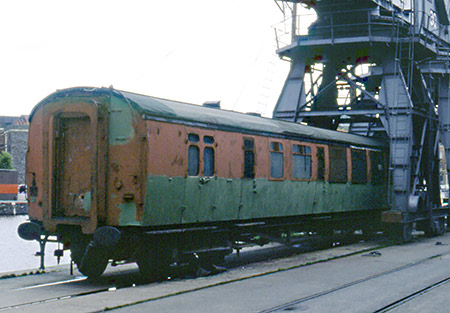

Photo, Right: No. 4227 at Bristol Docks, two years before coming to the Bluebell (Jeremy Ovenden, 23 August 1985)

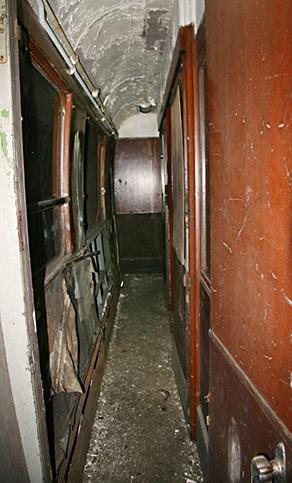

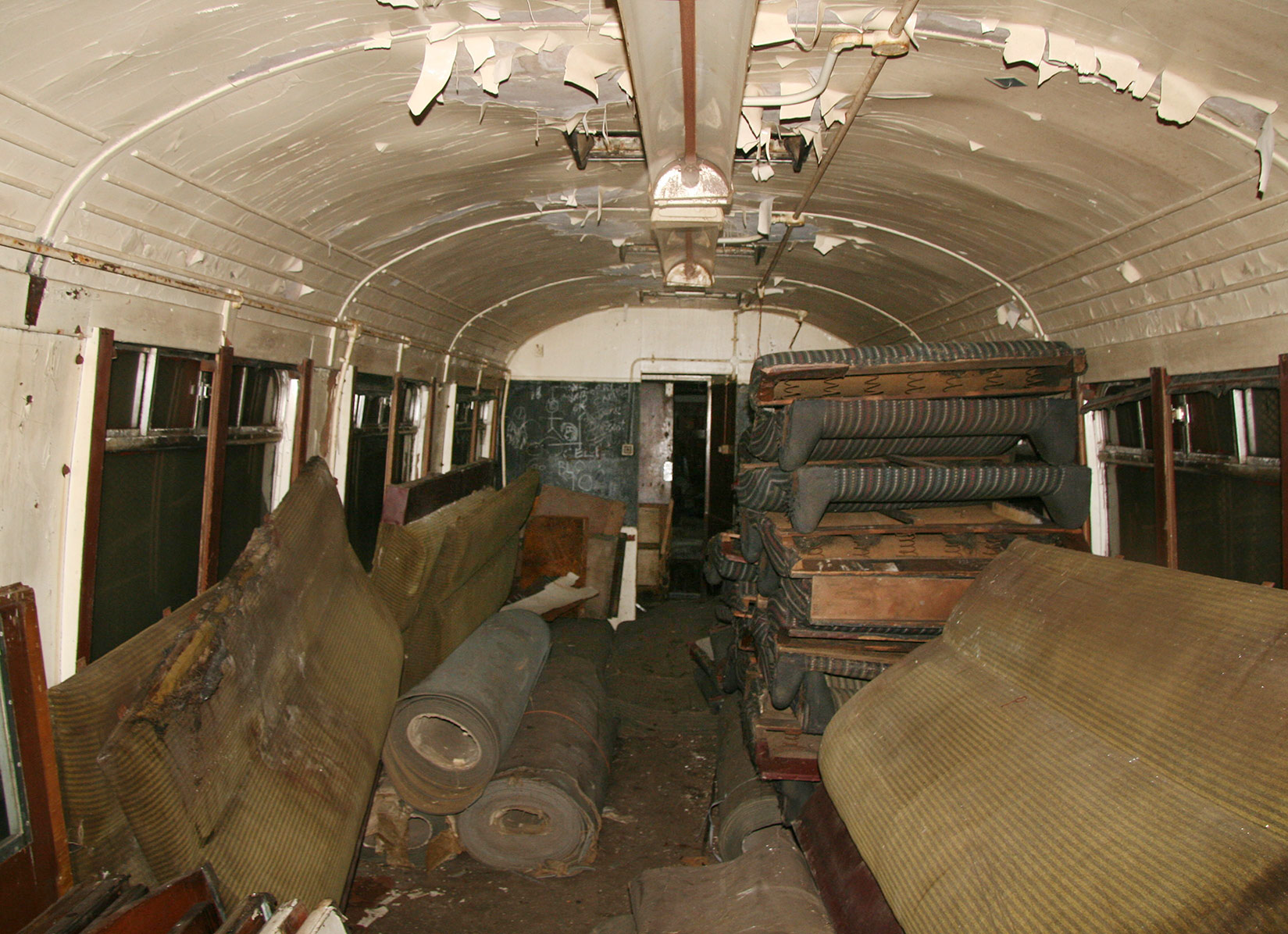

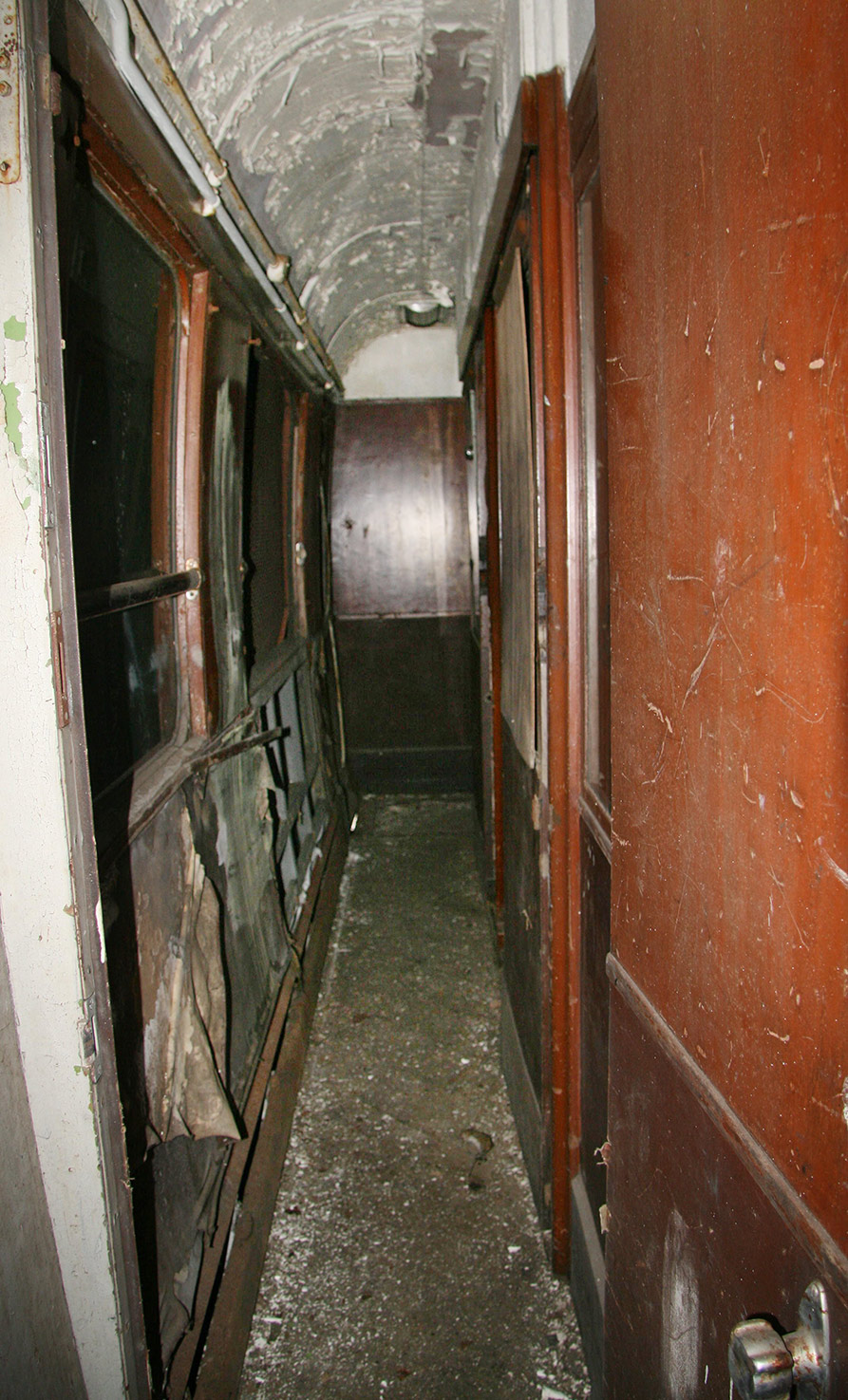

Below: Interior of No. 4227 as it currently is (Dave Clarke, 22 February 2012)

Interior of 4227 - Dave Clarke - 22 February 2012 Interior of 4227 - Dave Clarke - 22 February 2012
