London, Brighton & South Coast Railway
Stroudley 4w Brake Third No. 949

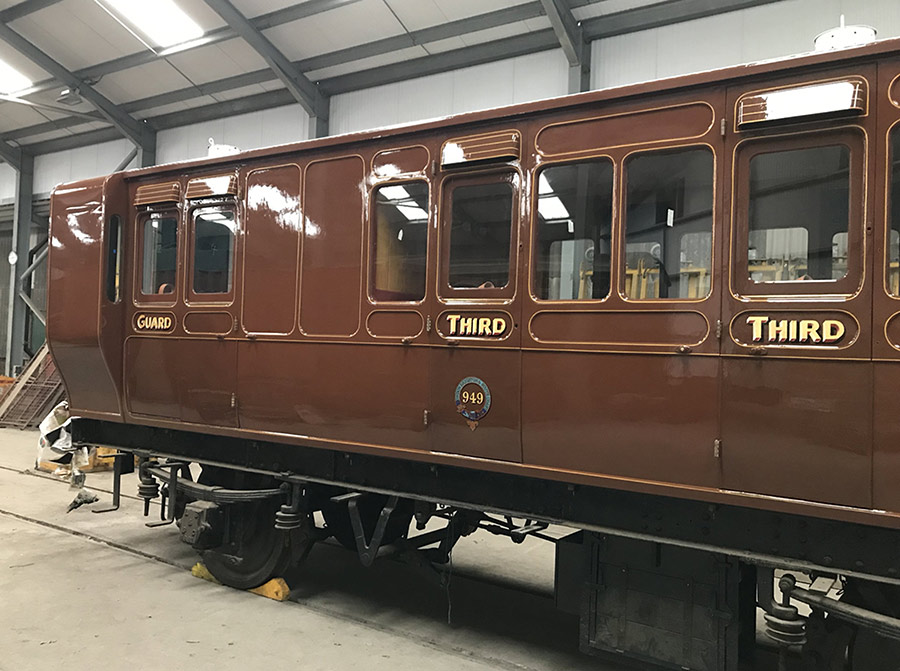

Stroudley Brake 949 in its first coat of varnish - Richard Salmon - 22 February 2023 No. 949 on completion of its first coat of varnish - 22 February 2023 - Richard Salmon

This coach, together with our Stroudley First, No.661, Stroudley brake No. 725 and Thirds No.328 and No. 992, will form a complete LBSCR train dating from the same period as our two Terriers, also designed by William Stroudley.

949 in the carriage works - Richard Salmon - 28 September 2019 Along with No. 676 it was rescued from a farm near Cranleigh where it had been used as a storage shed since soon after the World War I. Originally oil lit, one lamp illuminated all three passenger compartments, which didn't have partitions above the tops of the seat backs.

The exterior of the brake end as recovered still carried the set number "37 B", denoting its use at the end of a "Block" (i.e. close-coupled suburban) set of 12 gas-lit carriages. The set had, prior to 1907, been numbered "37 CP".

A suitable Southern Railway van underframe was shortenned to carry this body. The underframe, formerly belonging to SR Van U No. 2411, has had 6 feet removed from its length. Restoration work commenced in July 2004 after completion of No.661, and we look forward to seeing a complete Stroudley train with a Stroudley engine, which will then form one of the oldest standard-gauge trains in the country.

The photo on the right by Richard Salmon shows progress with the restoration as of 28 September 2019.

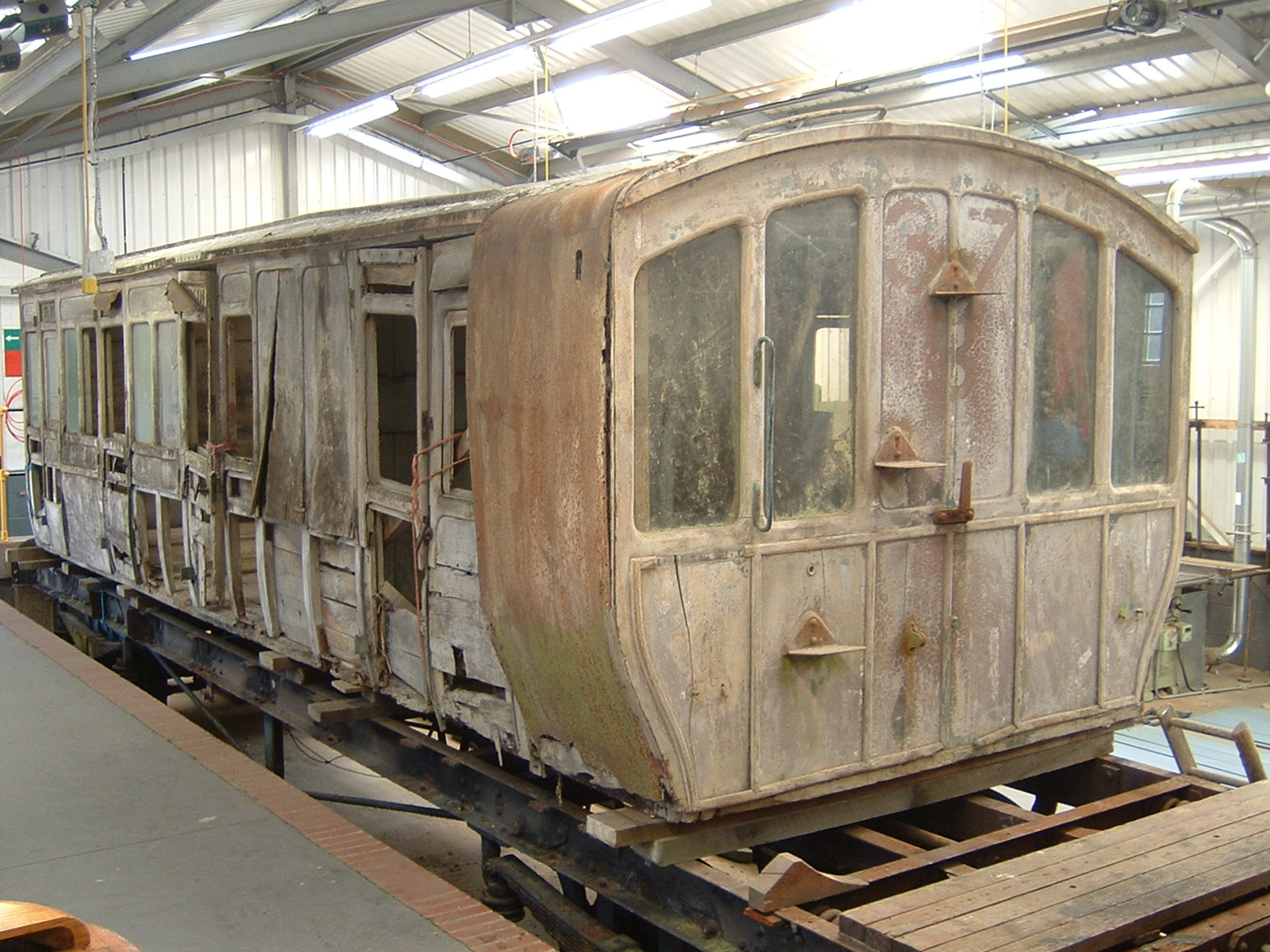

Stroudley Coach Body 949 on entering the works, 24 July 2004 - Richard Salmon

No. 949 as it was when restoration started in July 2004 - Richard Salmon

There are some photo reports of the early stages of the overhaul here - see also Dave Clarke's photos.


Type: 4-wheeled Suburban Brake Third (Diagram 34)
Built: (Midland Carriage & Wagon Co.) Sept 1881
Number: 949
Seating: 30 3rd class
Length: 26'
Weight: Original: 9 Tons
Withdrawn: 30 June 1911
Preserved: 1998
To Bluebell: 17 May 1998
Underframe: modified, ex Van U (CCT) 2411 (DS 70249)
Owner: Bluebell Railway Trust

Further Reading: LB&SCR Carriages, Volumes 1 & 2, Ian White, Simon Turner and Sheina Foulkes, Kestrel Railway Books, 2014 & 2016.
